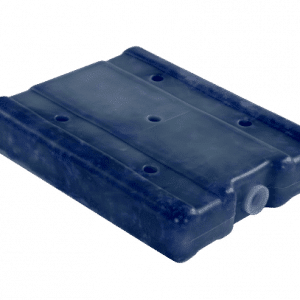

Rigid eutectic gels +20°C

The rigid eutectic gel or PCM +5°C brings the necessary energy to your medical coolers to maintain the temperature of your pharmaceutical products over a temperature range of 5°C +/-3°C.

The product is sold by lot of 12 units (12, 24, 36, etc.)

Works with :



Designed to resist shocks and punctures, the +20°C rigid eutectic gel with translucent liquid is used for heat-sensitive health products that must be maintained between 15°C and 25°C.



Principle

Gel eutectique- rigide- chaine du froid- accumulateur de froid

Rigid gels are an essential part of your cold chain. If the isothermal container limits the exchange of heat between the outside and the inside of your isothermal container, the eutectic gel plays the role of a cold engine.

Like a refrigerator whose holding temperature can be adjusted, it is the choice of the type of eutectic liquid contained in your rigid gel that will determine the temperature restored by these eutectic gels.

In the same range, consult :

our 0°C rigid gels for fresh products to be kept between 0°C and 7°C

Range- rigid gels- n20-p0- cold accumulator

our -20°C hard freeze for frozen products to be maintained between -30°C and -18°C

gel-eutectic-rigid-frozen-N20-cold expert

our +5°C rigid gel for the transport of heat-sensitive health products that must be maintained between 2°C and 8°C

rigid gel - p5- cold expert

Instructions of use

To restore their energy, rigid eutectic gels must be recharged at temperatures specific to their temperature range.
Designed for heat-sensitive healthcare products in the +15°C to +25°C temperature range, the blue liquid rigid eutectic gels can be used regardless of the season thanks to their heating and cooling modes.

Follow our packaging advice by downloading our “PCM+20 eutectic plate instructions” sheet

Interested in this product? Download the data sheet!

If you’d like more information on this product, you can download its technical sheet via the form opposite. You’ll receive your document directly by e-mail!

Advantages

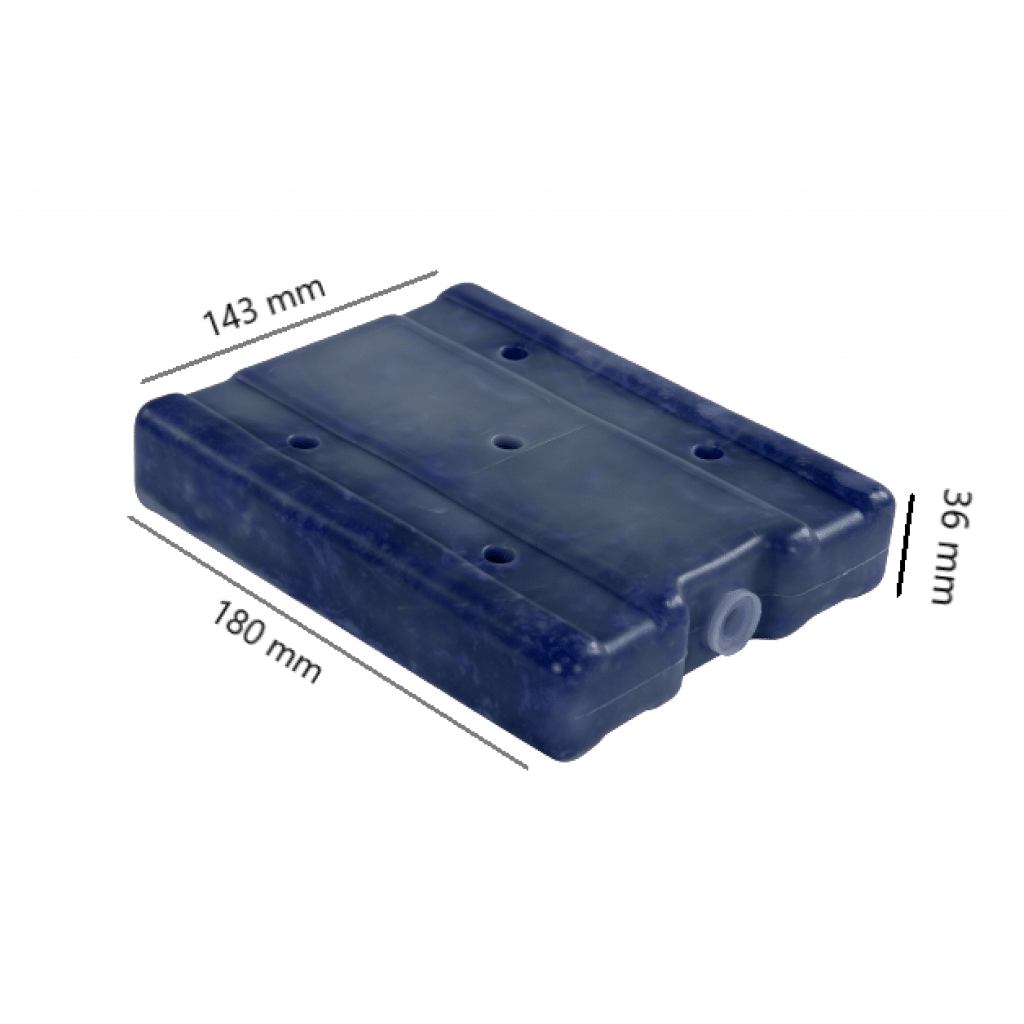

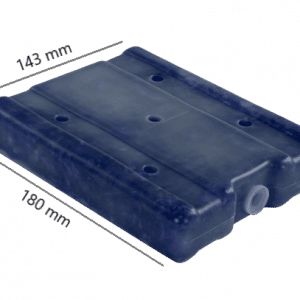

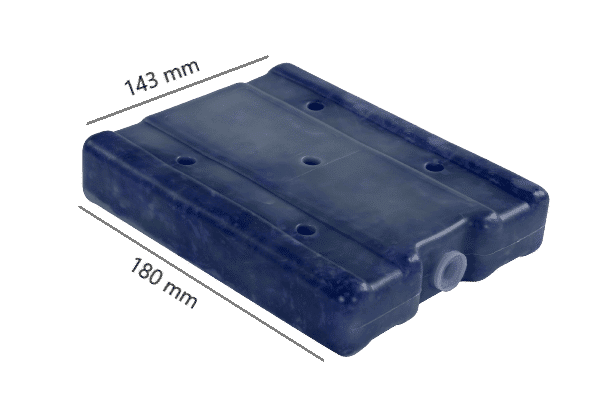

Gel eutectique rigide P20 900 dimensions

Thanks to their rigid shell, COLD & CO +20°S eutectic gels can be stored for refilling without worrying about their arrangement. Indeed, and contrary to the flexible eutectic gels which require to be stored flat to obtain a homogeneous shape during their freezing, the rigid eutectic gels do not undergo deformation during their change of state (solid / liquid). Therefore, if you need to use eutectic gels intensively and repeatedly to maintain the temperature of your heat-sensitive products, we advise you to use rigid gel blocks.

Robust

To withstand impact and compression over time, COLD & CO’s rigid eutectic gels are manufactured with an outer shell made of high-density polyethylene (HDPE), a material that guarantees their strength. The corners are also reinforced for better durability.

Waterproofing

drawing - water drop - sealing

Depending on the type of eutectic liquid present inside our coolers, COLD & CO rigid gel has an ultrasonically closed cap or a sealed aluminum cap to ensure a complete seal.

Lifetime and Maintenance tips

Our rigid eutectic gels are reusable in an almost unlimited way. However, in order to guarantee such a long life, in spite of numerous cycles of refilling and use in your isothermal boxes, it is important to take care of the rigid eutectic gels ! We recommend these 5 specific actions for that:

1. Store your rigid eutectic gels in a clean and dry place,

2. Limit the fall of your rigid eutectic gels especially after freezing,

3. Do not expose your rigid eutectic gels to extreme temperatures above +50°C or below -45°C,

4. Do not pierce or cut your rigid eutectic gels with a blunt object,

5. Do not wash your rigid eutectic gels in the dishwasher.

Perfect combination

Our +20°C rigid eutectic gels are 900 size and fit perfectly in our MedicalCase Pharma medical cooler.

Option

Rigid eutectic gel P20 – 12 units
